Name of produc：DP-72X36-3 Single-phase AC Voltmeter
Category Digital Voltmeter > DP-XX-3
Model DP-72X36-3 Single-phase AC Voltmeter
Optional Function:RS485 communication Modbus-RTU protocol, Switching input,
Switching output ,Analog output
Technical Data
Accuracy: Voltage accuracy class 0.5.
Parameters:
Rated voltage: AC 57.7V、AC 100V、AC 220V、AC 380V.
Overload Rating: 1.2X rating (continuous) 2X rating for 1 seconds.
Internal resistance: ≥1kΩ/ V(for non-mA/mV inputs only).
Frequency:45~65Hz.
Auxiliary Power Supply: AC/DC 48~240V、AC/DC 80~265V、AC 380V、AC 220V、AC 110V、AC 60V.
Display Features:
High-brightness display.
Display data full range 1-9999 arbitrary variable settings.
Display “HHHH”, when data over 1.4 times the full range.
Optional
Function:
Communication function:1 RS485 communication, Modbus-RTU protocol,
the baud rate is 1200,2400, 4800, 9600,
19200, 24000, 38400bps can be set.
Passive Status Collection: Support
four-way Passive Sensor status collection.
Status/Control Signals: support
four-way output voltage output (5V),2 way alarm relay output (contact:
AC250V/5A, DC30V/5A).
Operating Environment:
Operating temperature:-10℃~+55℃.
Storage temperature:-25℃~+70℃.
Relative humidity≤93%，Non corrosive gas.
Safety Performance:
Insulation resistance: ＞100MΩ.
AC withstand voltage: ＞AC 2000V.
EMC:
ESD: Level 4
Surge: Level 4
RF: Level 3
EFT: Level 3

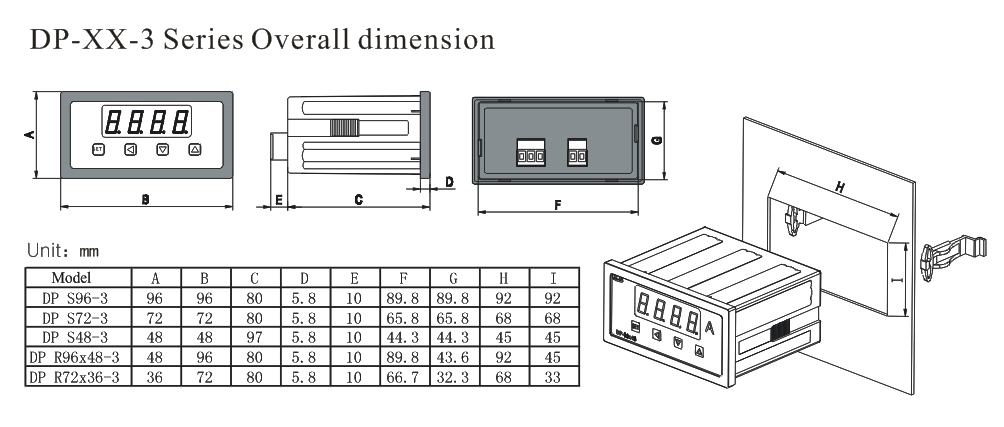

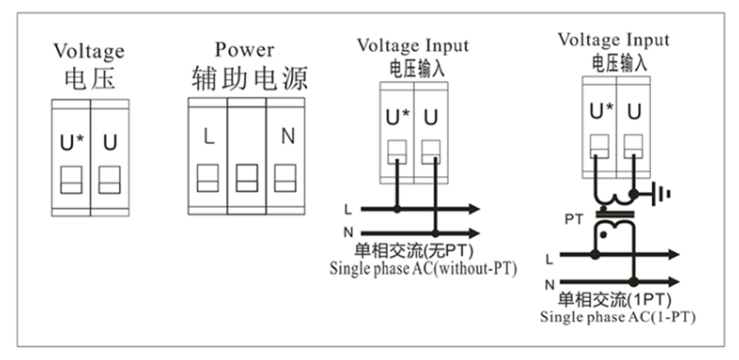

Signal
Wiring Diagram:
